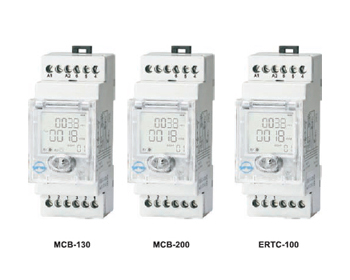

MCB-100/200- ERTC-100 series
Summary
The most important characteristics of ENTES multi-function digital time relay which is different from other relays are as follows:
A user-friendly menu, easy to use.
First, in addition to the main functions and trigger control sub-functions, the device also provides flexible and targeted solutions for many applications.
First, it can store the time and state information when power failure occurs in internal memory, so that the device can be restored to the final state after power recovery.
Firstly, there is no time difference between the function execution time and the actual adjustment time by using the digital time setting feature.
First, because of the use of battery power supply, simple installation, no auxiliary power supply (10 years or 1 million relay operations).
|
Product Selection Table |
|
time |
Trigger input |
Closing delay |
Turn off delay |
pulse |
Asymmetric circulating device |
Symmetrical circulating device |
Start/Stop |
Counter |
Left - right |
Star/triangle |
Two-stage connection delay |
Two-stage Turn off delay |
85-315V AC/DC |
DINIIShell |
pieces/包 |
|
Product code |
|
MCB-100 |
Multifunctional Time Relay |
0.1-9999second/ min |
● |
|
|
|
|
|
|
|
● |
● |
● |
● |
● |
● |
5 |
|
MCB-12 |
Multifunctional Time Relay |
0.1-9999second/ min |
● |
● |
● |
● |
● |
|
|
|
|
|
|
|
● |
● |
5 |
|
MCB-125 |
Multifunctional Time Relay |
0.1-9999second/ min |
● |
● |
● |
● |
● |
|
● |
● |
|
|
|
|
● |
● |
5 |
|
MCB-130 |
Multifunctional Time Relay |
0.1-9999second/ min |
● |
● |
● |
● |
● |
|
● |
● |
● |
● |
● |
● |
● |
● |
5 |
|
MCB-200 |
Multifunctional Time Relay(Battery work) |
0.2-9999second/0.1-9999 min |
● |
○ |
○ |
○ |
○ |
○ |
|
|
|
|
|
|
|
● |
5 |
|
ERTC-100 |
Counter/pulsetime Relay |
0.1-9999second/ min |
● |
|
|
● |
|
|
|
● |
|
|
|
|
● |
● |
5 | Note: Refer to the menu for sub-functions
|
Specifications |
MCB-100 |
MCB-120 |
MCB-125 |
MCB-130 |
ERTC-100 |
MCB-200 |
|
Shell |
|
size |
PK25(DIN II) |
|
Protection level |
IP 20 |
|
input |
|
working voltage |
230V AC/DC |
- |
|
Scope of work |
85-315V AC/DC |
- |
|
Power waste |
<2.5VA |
- |
|
Trigger input |
Dry contact |
|
output |
|
Repeat accuracy |
0.5% |
|
Reset time |
<120ms |
|
Contact output |
8A CO |
|
environment condition |
|
working temperature; humidity |
-5...+55℃; 85% |
|
Connect |
|
install |
Track installation;Screw terminal |
|
line type |
Single phase two wire |
|
