FG series
Summary

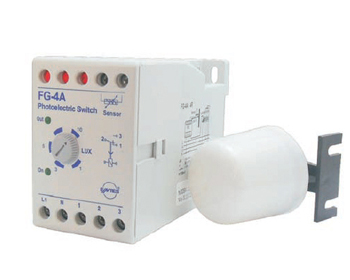

FG series photoelectric relays use optical sensors to monitor environmental sunlight. They are usually used in gardens, streets or shop windows. They open the lighting system after dark and close after daybreak. The photoelectric cell sensor is a CdS photoresistor covered with a sealed case. The resistance of the photoresistor varies according to the light intensity. If the brightness value is lower than the set lux value, the relay will open the output after the specified delay time.
|
Product Selection Table |
|
1-3illumination adjustable |
1-10illumination adjustable |
manual control |
Fusing protection |
Bipolar triode output |
Relay output |
sensor |
pieces/Box |
|
Product code |
|
FG-4 |
Daylight Switches |
● |
|
|
|
|
● |
|
10 |
|
FG-4A |
Daylight Switches |
|
● |
|
|
|
● |
|
10 |
|
FG-4R |
Daylight Switches |
|
● |
● |
● |
|
● |
|
10 |
|
FG-4T |
Daylight Switches(Bipolar triode output) |
|
● |
● |
● |
● |
|
|
10 |
|
FG-GǒZ |
Daylight Switches |
|
|
|
|
|
|
● |
- |
Specifications
|
FG-4 |
FG-4A |
FG-4R |
FG-4T |
|
Specifications |
|
size |
PK28 |
PK10 |
|
Protection level |
IP20 |
|
weight |
0,2kg;10 pieces/carton |
0,5kg;10 pieces/carton |
|
Power Supply |
|
Scope of work |
190- 255 VAC |
|
output |
|
On-Off delay |
5- 40 s. |
25-45 s. |
|
Contact output |
1CO
8A/2000VA |
1CO,5A/1250VA |
- |
|
Bipolar triode output |
- |
- |
- |
8A/400V |
|
Photocell input |
|
Lighting settings |
1-3 Lux |
1-10 Lux |
|
Lag value |
Min5%-Max 30% |
|
Adjustment tolerance |
- |
1 Lux (0.2-2 Lux)
10 Lux(7 - 12 Lux) |
|
environment condition |
|
ambient temperature |
-5/ +50℃ |
|
Connect |
|
install |
Track installation，Terminal with screw |
|
line type |
Single phase 2 wire |
|
