PRODUCT

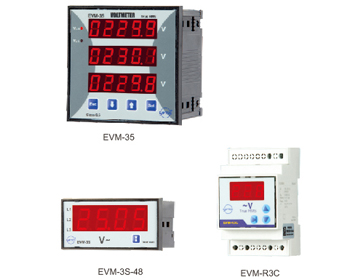

EVM/EVM-R
●24-250V AC/DC (for EVM-35/15)
●Measuring range of 1-40 kV with transformer (for EVM-35/15)
●Category 0.5 (for EVM-35/15)
●IP54 (for EVM-35/15)
●Real RMS measurement
●Non-flammable case
●Double isolation
●Measurement Category III
●Terminal connection
●Installation with rear terminal panel
●Operating temperature: -5 ℃, +50℃
(Used in EVM-35/15) - 5 (+) 70 ℃

Product Selection Table
Optional 3 phase
3~Voltage
1~Voltage
Maximum value
minimum value
Output contact
24~50V AC/DC
Panel installation
Guide install
piece/carton
Product code
EVM-3-48
Voltmeter
●
●
●
●
20
EVM-3-72
Voltmeter
●
●
●
●
16
EVM-3-96
Voltmeter
●
●
●
●
12
EVM-3C-48
Voltmeter(With Output Contact)
●
●
●
●
●
20
EVM-3C-72
Voltmeter(With Output Contact)
●
●
●
●
●
16
EVM-3C-96
Voltmeter(With Output Contact)
●
●
●
●
●
12
EVM-3S-48
3-phase selectable Voltmeter
●
●
20
EVM-3S-72
3-phase selectable Voltmeter
●
●
16
EVM-3S-96
3-phase selectable Voltmeter
●
●
12
EVM-R3
Voltmeter(track install)
●
●
●
●
16
EVM-R3C
With Output ContactVoltmeter(track install)
●
●
●
●
●
16
EVM-R3S
3-phase selectable Voltmeter(track install)
●
●
16
EVM-15-96
Voltmeter(0.5 class)
●
●
●
12
EVM-35-96
33-phase voltmeter(0.5 class)
●
●
●
12

Specifications
EVM-3
EVM-3C
EVM-3S
EVM-35
EVM-R3
EVM-R3C
EVM-R3S
Shell
size
72x72mm PR18; Slim96 PR25, 48x96mm PR20
96x96mm PR19
DIN3 TYPE PK20
weight
0.28kg/16piece(PR18), 0.30kg/12piece(PR25),
0.25kg/20piece(PR20)
0.34kg 1carton
= 12piece
0.25kg/carton= 16piecePK20
measure
Voltage
measuring range
10-600VAC
10-300VAC(L-N)
10-500VAC(L-L)
1-300VAC(L-N)
2-500VAC(L-L)
10-600VAC
Accuracy
1%±1位
0.5%±1position
1%±1position
size
<1VA
Power Supply
working voltage
110VAC/230V AC±10%
24-250VAC/DC
110VAC/230VAC±10%
Power waste
<4VA
working frequency
45-65Hz
output
delay
0-99.9 s
0-99.9 s
Output contact
1NO,5A 1250VA
0-999 s
1NO,5A 1250VA
standard
safety standards
EN 61010
EMC standard
EN 61000
Mechanical durability
EN 60529
environment condition
working temperature
-5/ +50℃
-5/ +70℃
-5/ +50℃
Overvoltage category
III
Connect
install
Panel installation
track install
Connection terminal
Socket screw
DIN3 screw
line type
Single phase 2 wire
Three-phase four-wire (star)
Single phase 2 wire
Three-phase four-wire (star)


DC Voltmeters
DCV
Summary
●The device is designed to measure the voltage of DC system.
●Broad supply voltage, 85-265 V AC/DC (DCV-10), 10-56 V AC (DCV-10);
●Communication between RS485 cable and MODBUS RTU protocol:
●Store the maximum and minimum values of measurements.
●The backlight LCD screen is easy to set up and can be clearly displayed under any illumination conditions.
●The measurement period is adjustable, ranging from 1 to 600 seconds.

Product Selection Table
Product code
DCV-10
●
●
●
●
●
●
●
20
DCV-10A
●
●
●
●
●
○
●
●
20
DCV-10S
●
●
●
●
●
●
●
●
20
DCV-10C
●
●
●
●
●
●
●
●
20
DCV-11
●
●
●
●
●
●
●
●
●
20
DCV-11A
●
●
●
●
●
●
●
20
DCV-11A
●
●
●
●
●
○
●
●
20
DCV-11S
●
●
●
●
●
●
●
●
20
DCV-11C
●
●
●
●
●
●
●
●
20
DCV-11CS
●
●
●
●
●
●
●
●
●
20


○ Programmable

Specifications
DCA-10
DCA-10A
DCA-10S
DCA-10C
DCA-10CS
DCA-11
DCA-11A
DCA-11S
DCA-11C
DCA-11CS
Shell
size
PR 20, 48x96 mm
terminal Protection level
IP 40
weight
0.240 kg
Display
2.5" Backlight LCD screen
measure
measure Input resistor
<2M
Accuracy
0.5%±1 position~【 (10%-100%)×Complete proportion】
Power waste（Input load）
<1VA
measuretime
1-600秒
Electric current
measuring range
+/-200V
Power Supply
working voltage
85-265V AC/DC
10-56V AC/DC
Power waste
<4 VA
working frequency
50-60 Hz
standard
safety standards
EN 61010-1
EMC standard
EN 60255
Mechanical durability
EN 60529
equipment Protection level
Double Insulation-Class II
terminal Protection level
IP 00
environment condition
working temperature
-20/-70℃
Overvoltage category
III
Connect
install
Panel installation(PR 20)
install Grade
III
Connection terminal
PR 20 Screwed socket
line type
Single phase 2 wire
Cable cross section (for terminals)
2.5 m㎡
Signal communication
Transport Interface/Protocol
ModusRTU
(R-485)Programmable
ModusRTU
(R-485)Programmable
ModusRTU
(R-485)Programmable
ModusRTU(R-485)可Programmable
Parity
No, odd, even
No, odd, even
No, odd, even
No, odd, even
address
1-247
1-247
1-247
1-247
transmission install
2400-38400
2400-38400
2400-38400
2400-38400
