EN-GTF Series
summary

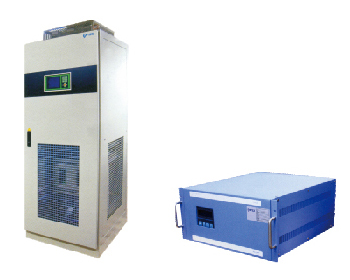

Active filter through the matching CT, real-time tracking and monitoring of the current load in the current and through the integration of the matrix SPD calculation, analysis of the harmonic load. The signal is transmitted to the IGBT by PWM, and the control inverter device generates a reverse current with the same direction as the core load harmonics, which is sent back to the grid. Implementation of the power grid in the harmonic offset, to filter out the purpose of harmonic.

Technical characteristics
● Three level technology
● Dynamic speed response
● High filter amplitude, >97%
● Closed loop control method
● 61 harmonics can be filtered out
● Adaptive control algorithm
● High operating efficiency, low loss
● Optical fiber communication, optical trigger
● Harmonic reactive power priority
● FPGA tell distribution control
● Friendly man-machine interface, support multi language

technical parameter

Design code
EN-GTF(GTS)-34/33-400
Voltage grade
400V
480V
690V
system parameter
Permissible voltage range
380V（-40%～+20%）
480V（-20%～+20%）
690V（-30%～+15%）
power grid frequency
50/60Hz（Range：45Hz～62Hz）
50/60Hz(Range：45Hz～62.5Hz)
Parallel number of stations
No less than 10 sets
Whole machine efficiency
≥97%
Power network structure
Three-phase three-wire, three-phase four-wire
Three phase three wire
Current transformer
150/5～10,000/5
Circuit topology
Three level
performance index
Rated capacity
25A/50A
60A/75A
100A
150A
75A/150A/225A/300A
Harmonic compensation
Support
Reactive power compensation
Support
Unbalanced compensation
Support
Filter range
2～50次
Selection of Supported Filtering Numbers
2-61 optional times
Filtering degree
Adjustable 2-61 times
Filtering ability
THDi (Current Distortion Rate)<5%
quick response time
<50us
<100us
Full response time
<5ms
<20ms
Target power factor
Adjustable from -1 ~ 1
control algorithm
Adaptive automatic algorithm or instantaneous reactive power algorithm
switch frequency
20kHz
Intelligent air cooling
Intelligent adjustable air cooling
Noise index
<56dB
<70dB

Design code
EN-GTF(GTS)-34/33-400
Voltage grade
400V
480V
690V
Communication monitoring capability
communication interface
RS485，Mesh port
Communication protocol
General Electricity Protocol, Modbus Protocol, TCP/IP
Modular Display Interface
LCD multi-function touch color screen; LED indicator
LCD Color screen；LED Indicator light
8 Inch Touch LCD screen
Protection function
Overvoltage protection, undervoltage protection, short circuit protection, inverted bridge reverse protection, overcompensation protection
CT Monitoring Warning
Yes
Fault alarm
Yes, up to 500 alarm records
Monitor
Support independent monitoring/support centralized monitoring
mechanical properties
Installation mode
Wall-mounted/cabinet type (150A APF only rack type)
Whole cabinet type
size（Width * depth * height mm）
440X470X150
440X590X190
440X600X230
500X510X270
800*600*2200(Whole cabinet)
Net weight
18kg
35kg
36kg
48kg
290～560kg
colour
Light grey (ARL7035) (or custom-made)
CT wiring mode
Support source side load side
Environmental requirements
Altitude
≤1500m，1500～4000m Between (customizable)
Operating temperature
-10℃～+40℃
relative humidity
5%～95%，No condensation
Protection level
IP20，The rest of the IP can be customized
Relevant Qualifications and Standards
Follow the standards
IEEE519, IEC 61000-3-6, ER G5/4, EN61000-3-4, EN50/78, EN61000-4-6

size parameter
  400V/480V
Rated current
25A
30A
50A
75A
90A
100A
150A
200A
250A
300A(Note: Larger capacity can be connected in parallel)
Connection mode
Support source side load side
sizemm
500×252.5×627.5（Wall mounted）
600×800×2200 （Cabinet type）
800×800×2200 （Cabinet type）
800×1000×2200 （Cabinet type）
1000×800×2200 （Cabinet type）
1000×1000×2200（Cabinet type）
550×430×648（Wall mounted）
600×800×2200 （Cabinet type）
800×800×2200 （Cabinet type）
800×1000×2200 （Cabinet type）
1000×800×2200 （Cabinet type）
1000×1000×2200（Cabinet type）
600×800×2200 （Cabinet type）
800×800×2200 （Cabinet type）
800×1000×2200 （Cabinet type）
1000×800×2200 （Cabinet type）
1000×1000×2200（Cabinet type）
Protection level
IP21（Other protection levels can be customized）

  690V
Rated current
125A/150A
250/300A
375A/450A(Note: Larger capacity can be connected in parallel)
Connection mode
Three phase three wire
size mm
800×800×2200 （Cabinet type）
800×1000×2200 （Cabinet type）
1000×800×2200 （Cabinet type）
1000×1000×2200（Cabinet type）
Protection level
IP21（Other protection levels can be customized）
