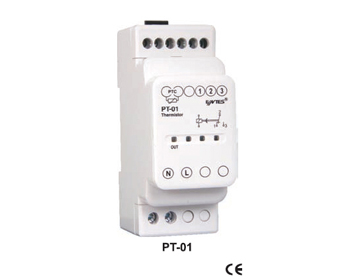

Thermistor Relay
PT-01
Summary
PT-01 is an electronic relay for monitoring the temperature of motor. PT-01 thermistor relay is developed for PTC protection. When the temperature of motor coil exceeds the limit temperature of Tc-PTC, the output relay will be switched off immediately.
Refer to the figure below to understand the typical impedance of PTC temperature characteristics at three different switching temperatures (110, 120, 130). As shown in the figure, the PTC impedance is less than 100W when T < Tc-5, and T > Tc+5. C, PTC impedance greater than 10 kW |
|
Product Selection Table |
|
"Np phase" protect |
phase sequence protect |
PTC protect |
Out-off-balance protect |
Adjustable
Interruption delay |
Adjustable Turn off delay |
1 C/O contact |
1NO contact |
DIN1 Track installation |
DIN2 Track installation |
Pieces / boxes |
|
Product code |
|
PT-01 |
Thermistor relay |
|
|
¡ñ |
|
|
|
¡ñ |
|
|
¡ñ |
10 |
|
PTC-3 |
Three Thermistor Groups |
|
|
|
|
|
|
|
|
|
|
50 |
|
Common Specifications |
|
working voltage |
230 V AC; 50/60 Hz |
|
Scope of work |
(0,9-1,1)x Un |
|
Connect |
3- phase/Zero line(FR-02)/ 1- phase/Zero line(PT-01) |
|
Output contact |
1CO contact£¬8A, 2000 VA |
|
Protection level |
IP 20 |
|
ambient temperature Range |
-5- +50¡æ |
|
size |
PK28 (FR-02, PT-01) |
|
install |
track or Panel installation |
|
Shellweight |
0,3kg |
|
1 pack quantity |
10 piece | |
